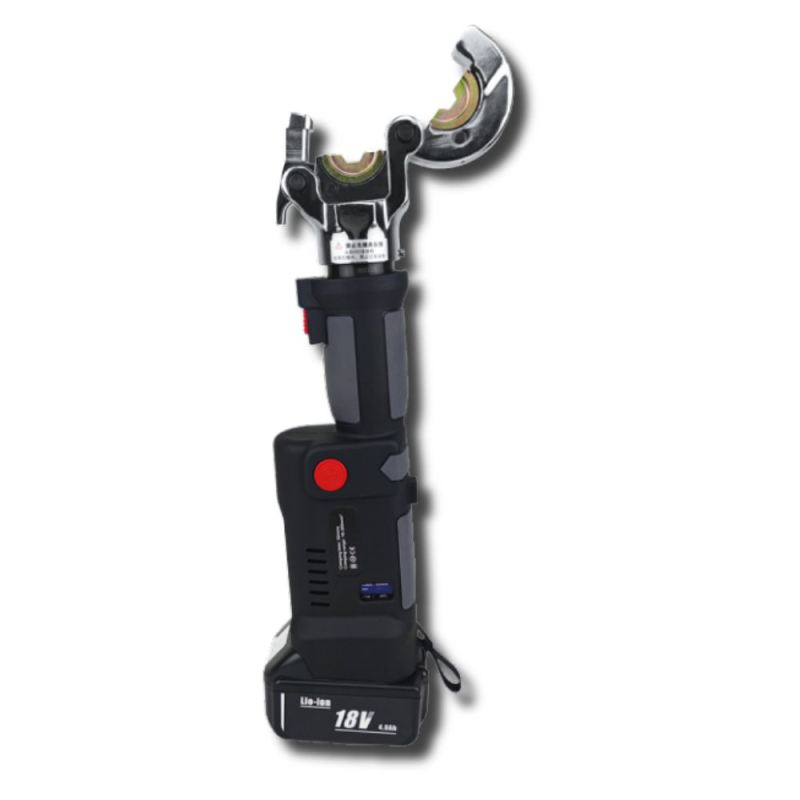

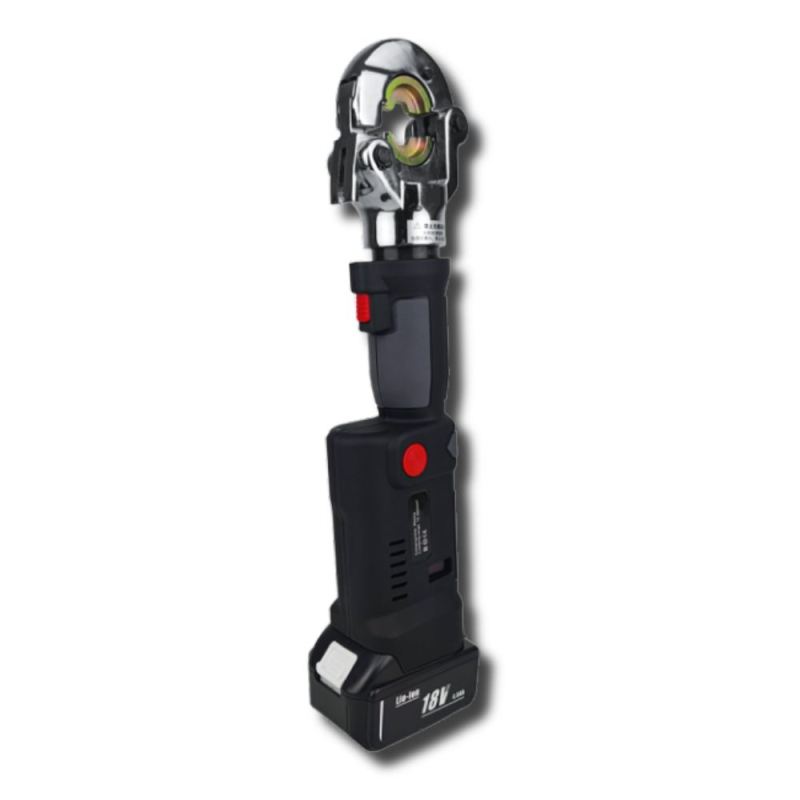

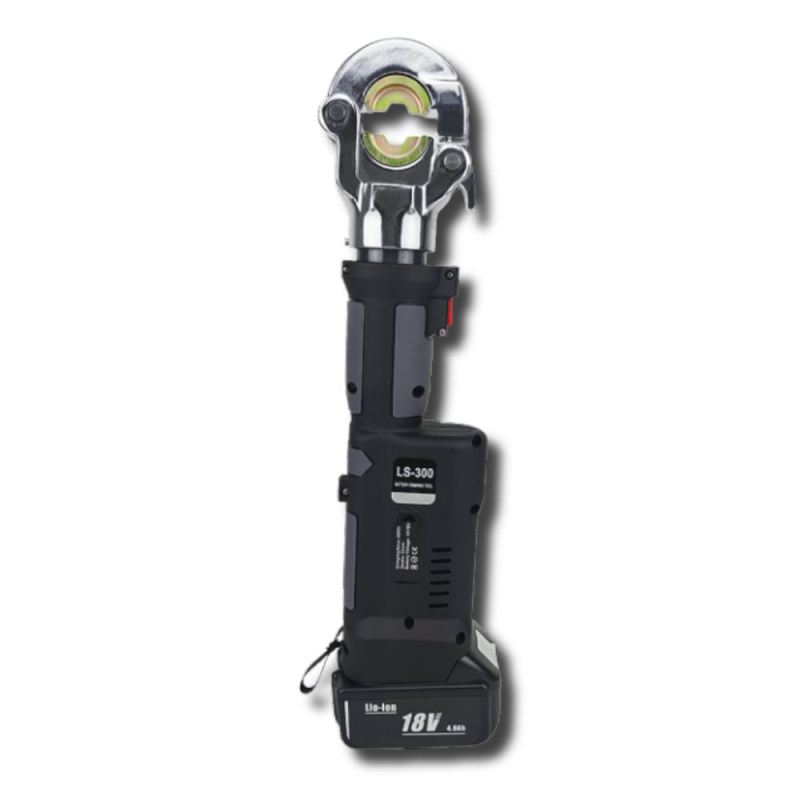

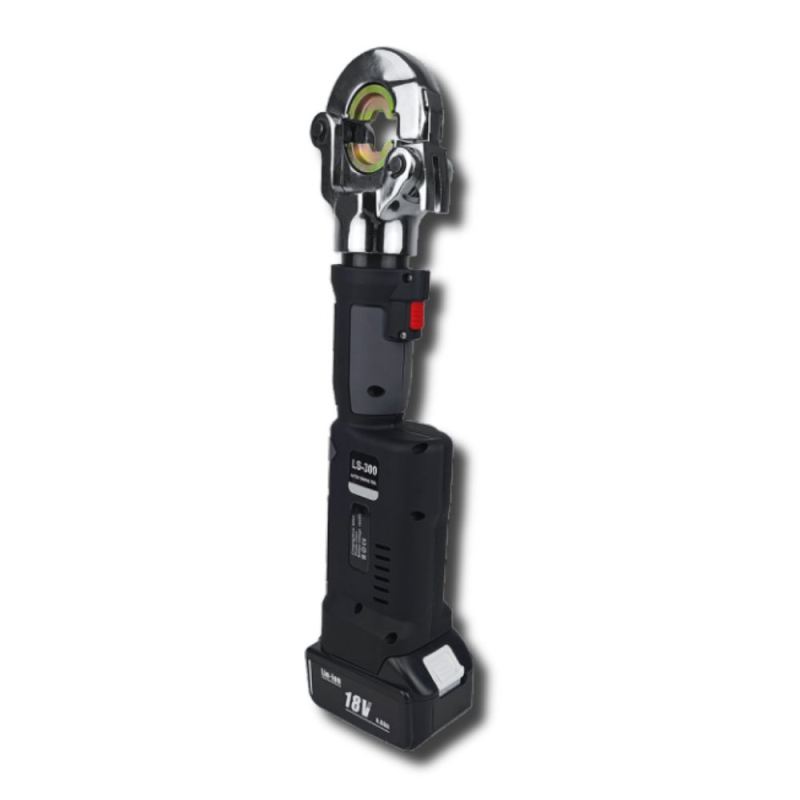

Changyou LS-300 Mini Battery Hydraulic Crimping Tool 16-300mm2

The Changyou LS-300 mini battery-powered hydraulic crimping tool is an ultra-compact cordless solution engineered for fast, precise, and effortless cable lug termination from 16mm2 to 300mm2. Featuring an inline ergonomic design, a 180° rotatable head, and a powerful 60KN output force, it is ideal for narrow distribution boxes, overhead line maintenance, and electrical cabinet installations. Built-in micro-computer control with auto-pressure relief ensures reliable, burr-free crimps and extends battery life during heavy-duty site work across Singapore and Malaysia.

Technical specifications:

• Model Name: Changyou LS-300

• Crimping range: 16 - 300mm2 (Cu/Al)

• Crimping force: 60 KN (6 Tons)

• Stroke: 15 mm

• Crimping cycle: 2 - 4 seconds (depends on cable size)

• Battery voltage /Capacity: 18V / 5.0Ah Lithium-ion

• Standard crimping dies: 16, 25, 35, 50, 70, 95, 120, 150, 185, 240, 300 mm2

• Head rotation: 180°

• Weight (with battery): 3.2 kg
